What are the Main Parts of an HVAC System? (With Diagram)

Key Takeaways:

• Your system includes indoor and outdoor components that heat, cool, and circulate air.
• Major parts include the condenser coil, evaporator coil, blower motor, return vent, coolant lines, and AC unit compressor.
• The HVAC system diagram helps you visualize how all the parts work together and makes it easier to understand repairs, upgrades, or replacements.

Ever wonder what is really going on behind the scenes when your air turns on? A home’s HVAC setup might seem like a mystery, but once you see a HVAC system diagram, it starts to make a lot more sense.

Below, we will break down the main parts of an HVAC system using a simple HVAC diagram, and explain what each one does. Whether you’re dealing with a repair, thinking about replacing your system, or just want to understand what a technician is talking about, this guide is a great place to start.

What You Are Looking At

Here’s a look at a typical HVAC system diagram. It shows a common residential setup with both indoor and outdoor components. Lets break it down:

Key Parts of the System

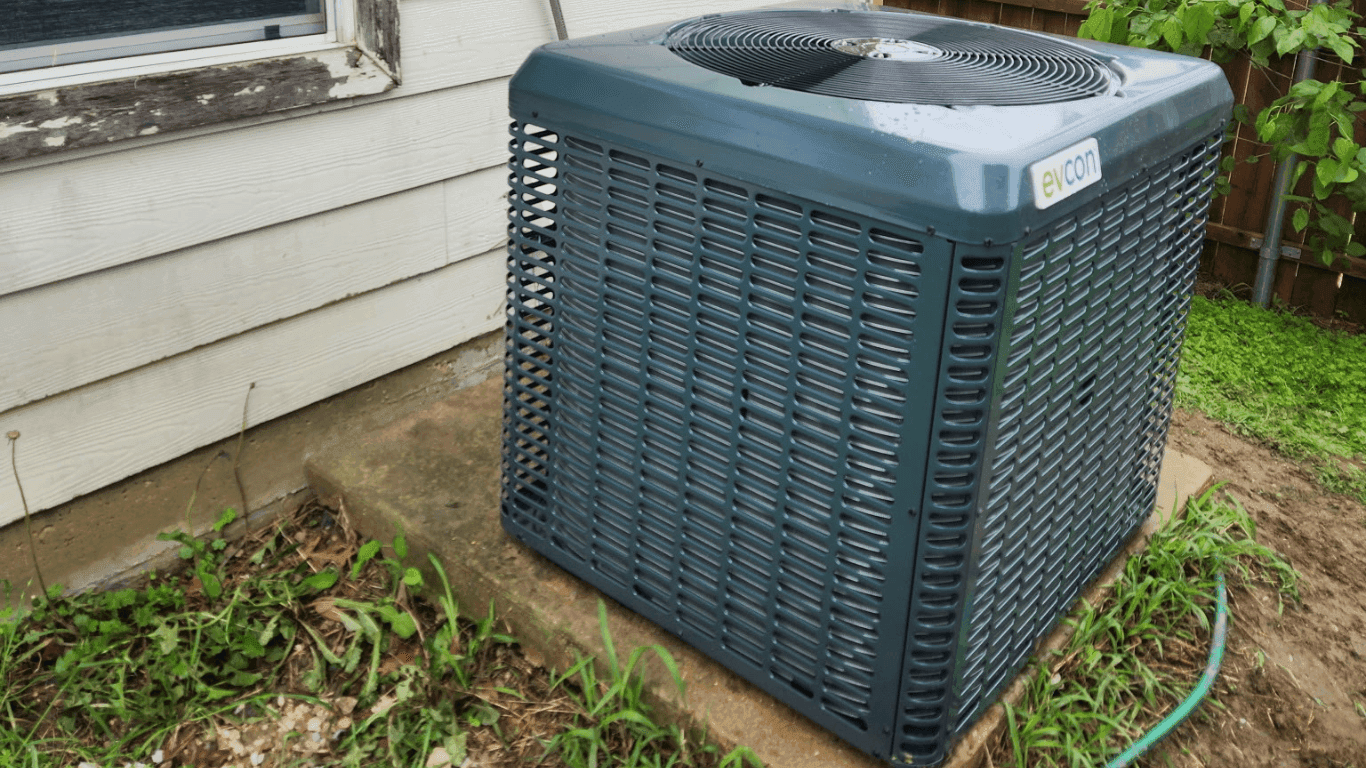

1. Condenser Unit (Outdoor Air Conditioner)
This is the big boxy unit outside of your home. Inside, you’ll find the AC unit compressor, condenser coil and fan. It’s where heat from inside your home gets released outside.

2. AC Unit Compressor
Think of this like the heart of your system. It pumps refrigerant through the whole setup and keeps everything flowing the way it should.

3. Condenser Coil
This coil wraps around the outside of the unit and helps release heat. As refrigerant flows through, it the fan blows over the coil to help cool it down before it cycles back inside.

4. Coolant Lines (aka Refrigerant Lines)
These are the insulated copper tubes running between your indoor and outdoor units. They carry the refrigerant (the substance that helps cool your air).

5. Evaporator Coil (AC Coil)
Inside your home, this coil is what cools the air as it passes through. Warm indoor air blows over the coil, the refrigerant absorbs the heat, and cool air moves into your ducts.

6. HVAC Blower Motor (Blower)
The HVAC blower motor powers the fan that pushes air through the system. Without it, you wouldn’t feel air coming out of your vents, no matter how cool or warm it is.

7. Filter
The filter is tucked behind the return vent, trapping dust, pollen, and other unwanted particles floating around your home.

8. Return Vent (Cold Air Return Duct)
This pulls air from your living space back into the system so it can be filtered, conditioned, and pushed back out again.

9. Drain Lines
These carry away any moisture collected as the system removes humidity from the air, especially during hot, sticky months.

Why The HVAC System Diagram Matters

Having a HVAC diagram on hand makes it easier to follow what’s going on when a technician says something like “Your evaporator coil is frozen” or “You’ve got a leak in the coolant line.” Even if you’re not planning to fix anything yourself, just knowing what each part does can help you ask better questions and feel more in control of your home’s comfort.
